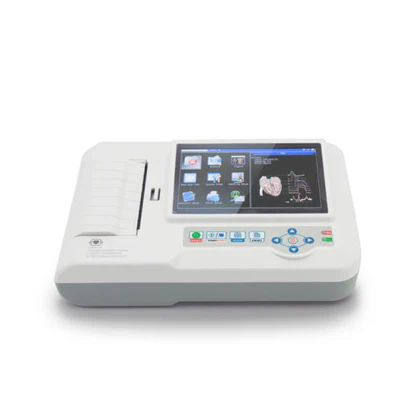

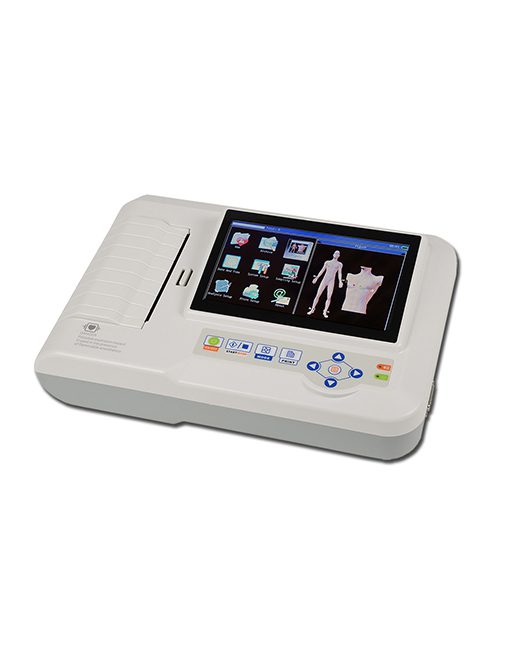

ECG 600G – 3 / 6 Channel & Interpretation

Original price was: R13830,00.Current price is: R13500,00. Exc VAT

Features:

7″ TFT, touch screen, LED backlight
Digital isolation technology and signal PRO-cessing solution, digital filter
Patient management, name and age and ID
Detail analysis report
Multi-language options: Germany, France, Italian, Turkey, etc
Built-in lithium rechargeable battery, wide thermal printing system
USB and LAN socket. Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
Auto-measurement, auto-analysis, and auto-interpretation
Supplied with Disposable Electrodes

Category: ECG Machines Brand: Contec

Description

Specifications:

MODEL: ECG 600G
Product safety Type: Class I, type CF applied part, which has defibrillation – proof applied part
Leads: Standard 12 Leads
Display: 7” TFT Touch Screen, LED backlight
Input: Floating; protection against defibrillator effect.
Input impedance: 50M
Patient Leak Current: <10uA
Sampling Rate: 1000Hz
Frequency Response: 0.05 ~ 150Hz (-3dB)
Time Constants: >3.2s
CMRR: >100dB
Dimension of Recording Paper: 110mm x 20M, Paper speed 25mm/s, 50mm/s
Sensitivity choice: 5,10,20mm/mV
Measurement parameters: HR, R-R interval, P-Duration, QRS Duration, Q-T interval, T-Tc, P Axis,QRS Axis, T Axis, R(V5), S (V1), R(V5) + S(V1)
Product Safety Type: Class I, CF. Defibrillation and pacing protection
Enduring Polarization voltage: ± 300mv
Noise Level: <15uVp-p
Dimension: 130mm (L) x 74mm (W) x 25mm (H)
Net Weight: 2.3kg
