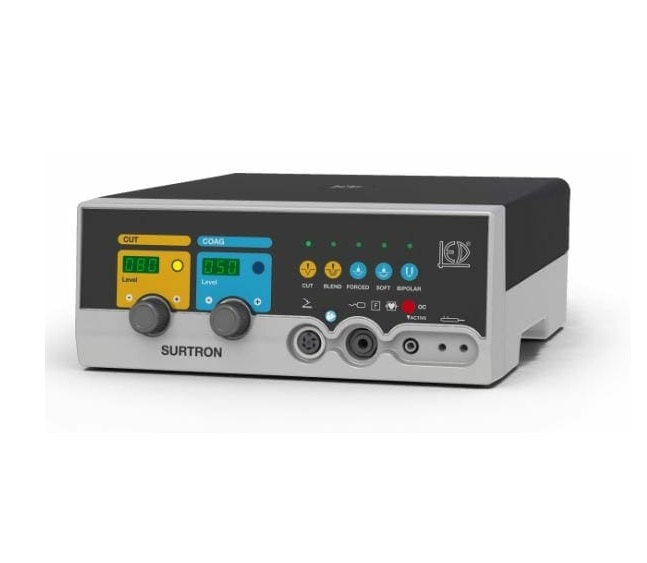

Surtron Diathermy 120W Bipolar Surgery
Surtron Diathermy 120W Bipolar Surgery
The Italian made LED SURTRON® high frequency electrosurgical unit which allows Max output power CUT 120 W-250 Ω, cut-coagulation BLEND, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG and BIPOLAR coagulation. The digital reading of delivered power and the monitoring of operative function guarantees reliable feedback to the user. The connection of the neutral electrode is constantly monitored. The earth plate contact is monitored using a split electrode.
It is possible to control the monopolar output functions (Cut or Coag) at the handle or the foot switch. The included Bipolar forceps can be operated using the foot switch.
LED SURTRON 120W Diathermy Electrosurgical FEATURES:
- SURTRON®,by means of the selections of the unit’s performance, allows pure cut CUT, coagulated cut BLEND, superficial coagulation COAG FORCED, deep coagulation, in absence of carbonization, COAG SOFT and, with a special adapter, bipolar coagulation BIPOLAR. The digital reading of the delivered power and the operative function’s monitoring by microcontroller guarantees the absolute reliability of working conditions.
- SURTRON®allows a highly professional surgery thanks to the ergonomic and safety solutions normally utilised. It is continually monitored the connection of neutral electrode and, if a split neutral electrode is used, the neutral electrode to patient contact.The possibility to control the output functions, as well as the output power level, by the handle, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.
LED SURTRON 120W Diathermy Electrosurgical CONTROLS:
- Plate/patient circuit watching
- Delivery time watching
- Output power watching
- Self analysis
MAIN FEATURES:
| Surtron | 120 | ||
| Maximum output power CUT (W) | 120 → 250Ω | ||
| Maximum output power BLEND (W) | 90 → 200Ω | ||
| Maximum output power FORCED COAG (W) | 80 → 150Ω | ||
| Maximum output power SOFT COAG (W) | 60 → 100Ω | ||
| Maximum output power BIPOLAR CUT(W) | 40 → 100Ω | ||
| Working frequency | 600 kHz | ||
| Mains voltage (Vac) | 115 –230 | ||
| Mains frequency (Hz) | 50-60 | ||
| Electrical class (EN60601-1) | I CF | ||
| Neutral electrode | -F- | ||
| Weight Kg | 7 | ||
| Size HxLxD mm | 260x110x265 |
LED SURTRON 120W Diathermy Electrosurgical STANDARD ACCESSORIES:
| SURTRON® | 120 | ||
| Electrosurgical unit code | 10100.20A | ||
| Cable for neutral plate disposable/5365 | •/1 | ||
| Kit of assorted electrode length 5cm (10pcs) | •/1 | ||
| Manual of instructions | •/1 | ||
| Not water-proof foot switch | •/1 | ||
| Power supply cable 3x1mm SIE-IEC – 2mt | •/1 | ||
| Reusable handle with finger switches | •/1 | ||
| Steel neutral electrode patient plate | •/1 |
Features
- Max output power CUT 120 W-250 Ω
- Max output power BLEND 90 W-200 Ω
- Max output power FORCED COAG 80W-150Ω
- Max output power SOFT COAG 60 W-100 Ω
- Max output power BIPOLAR 40 W-100 Ω
- Working frequency 600 KHz
