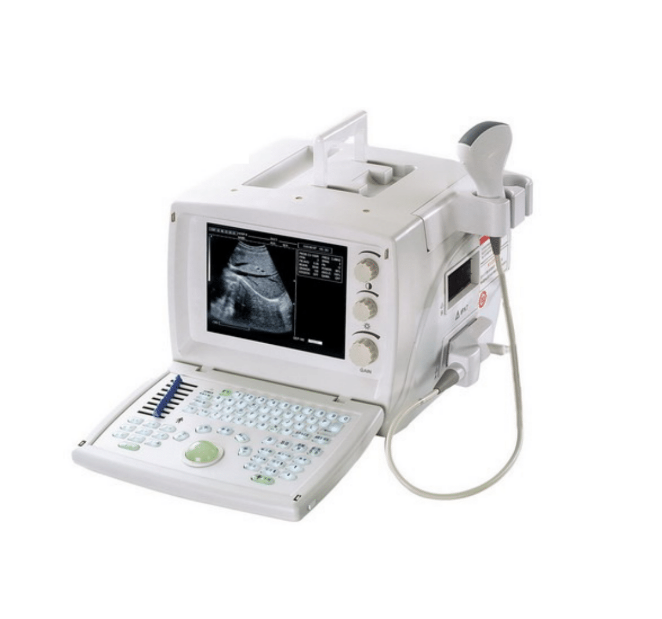

Portable Veterinary Ultrasound 9618 V

R51500,00 Exc VAT

Main Features

With revolutionary technology of full digital beam-forming,WED-9618V,provides the excellent image quality with high resolution and definition. The selectable multiple transducers, powerful measuring and analysing software packages extend its application to broader fields

Category: Veterinary

Description
Reviews (0)

Description

Portable Veterinary Ultrasound 9618 V

Main Unit Parameters:

Scanning Model	Electronic Linear Array, electronic convex array
Cine-loop	≥400 frames
Image Storage	≥32 frames
Display Depth	≥250mm
Scanning Angle	Visible and adjustable
Display Mode	B, B+B, B+M, B+M/M, M, and 4B
Operation Interface	Chinese/English switchable
TGC Adjustment	Near Field, Far Field, Total Gain Independent Adjustment
Focus Control	Focus Number, Focus Distance, Focus Position Adjustment
Image Processing	Image Black/White, Gamma Correction, Edge Enhancement and Histogram
External Ports	External Ports: Video port, RS-232 port and USB port
Measurement	Distance, Perimeter, Area, Volume, Obstetrics (GA measurement for horses, cattle, sheep, pigs, cats and dogs etc.)
Real-time Depth	16 levels are adjustable
Zoom	≥2 times
